- IC Part No
- BT2323
6 Channel Audio Selector IC

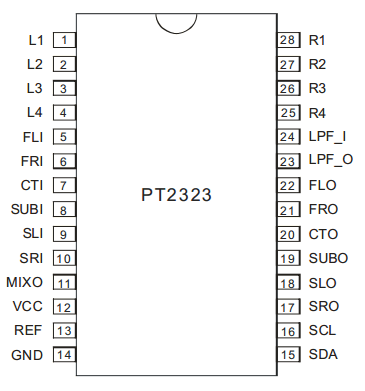

With CMOS technology, the 6-channel audio selector PT2323 was created especially for home theater systems. With the help of an integrated 2-Channel to 6-Channel Translator, users can mimic a 6-Channel audio output by simply mixing a standard stereo channel. High performance is achieved by combining features such as a single power supply (9V), I2C Bus Interface, and extremely low Total Harmonic Distortion (THD < 0.005%) into a single chip. The application circuit and pin assignments are optimized for a simple PCB layout and financial benefit.
With CMOS technology, the 6-channel audio selector PT2323 was created especially for home theater systems. With the help of an integrated 2-Channel to 6-Channel Translator, users can mimic a 6-Channel audio output by simply mixing a standard stereo channel. High performance is achieved by combining features such as a single power supply (9V), I2C Bus Interface, and extremely low Total Harmonic Distortion (THD < 0.005%) into a single chip. The application circuit and pin assignments are optimized for a simple PCB layout and financial benefit.
