TV Boards LG T-CON UK UM SM80 SM81 LG super UHD tv tcon board voltage details , 55UM7100, 75UK7300

Laptechinfo

Laptechinfo

Administrator
Staff member

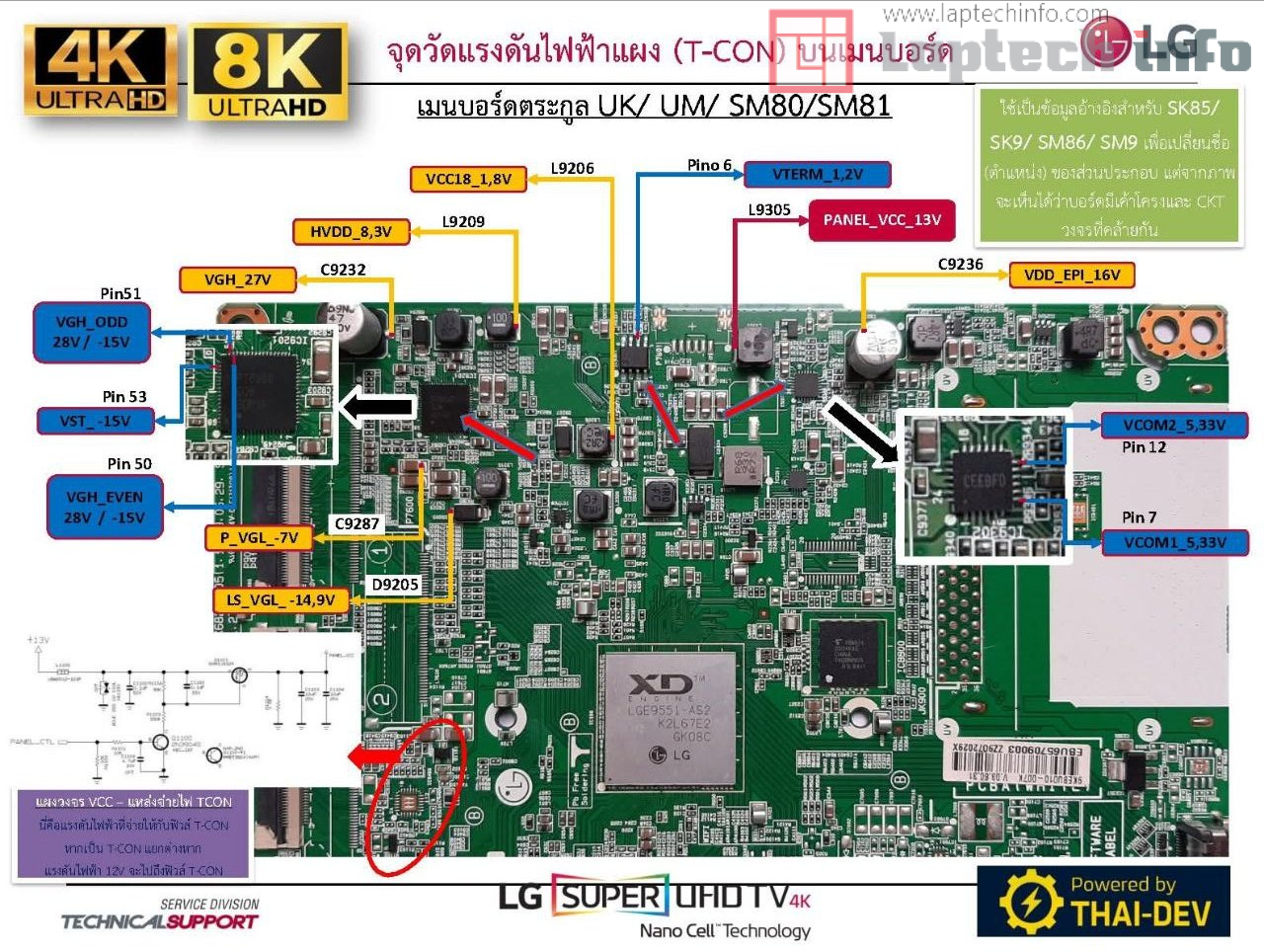

🧠💥Revealing the Secrets of T-CON Voltage Measurement Schematics | LG 4K-8K UHD / Super UHD / NanoCell

A template that includes key voltage measurement points on UK / UM / SM80 / SM81 motherboards.
Check the actual voltages of VGH / VGL / VCOM / PANEL_VCC / HVDD / VTERM / VDD_EPI. ⚡️True repair technicians must measure voltage.

Perfect for repair technicians who need to analyze problems such as "dark screen, missing image, vertical and horizontal lines."
📍 Measure a single point and know which side is faulty.

🧠 Can be used as a reference for SK85xx / SK9xx / SM86xx / SM9xxx models (Super UHD)

UK / UM models, for example, "55UM7100, 75UK7300..."

Can be used for comparison with other LG motherboards.

(Original schematic image file with UHD resolution)

💡 "Learn from the real thing, measure for real, use for real troubleshooting."
